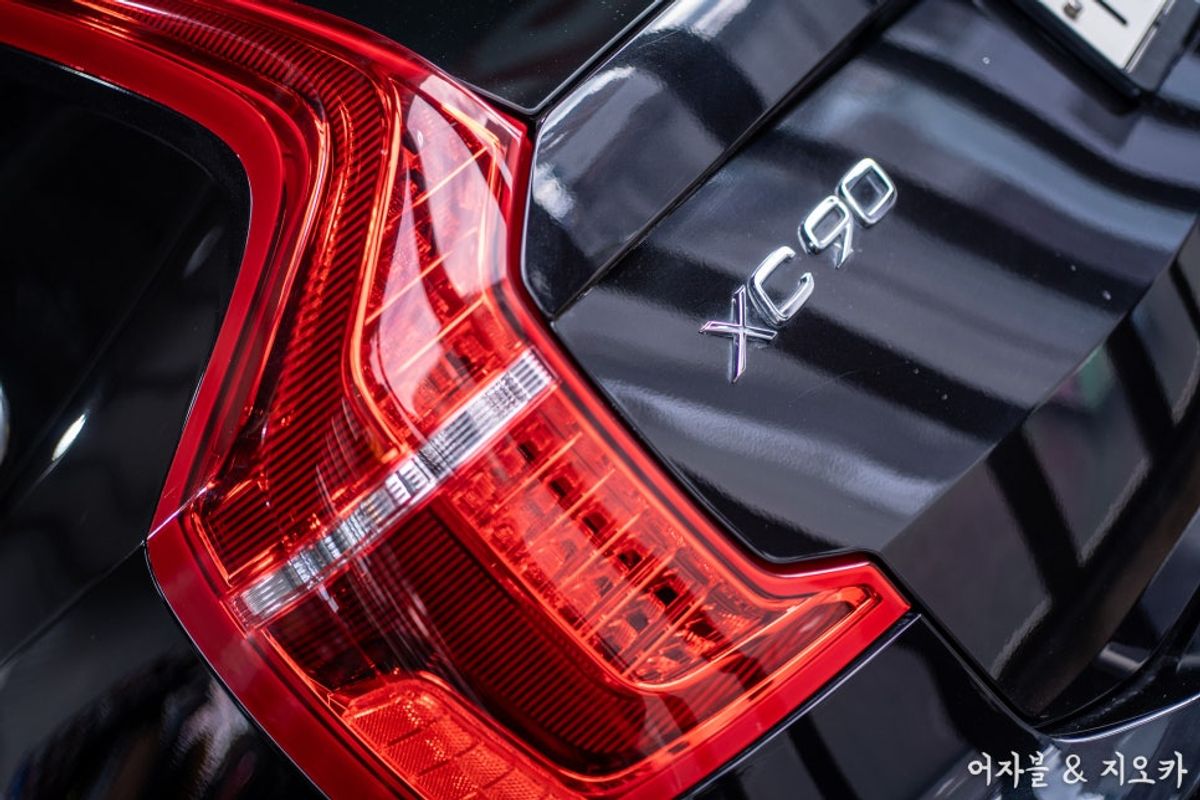

Today, we will perform an engine oil change on a Volvo engine for the XC90 T8 AWD model
When customers call, they usually provide basic information, typically just the vehicle name, like XC90
After that, we filter through the vehicle identification number or license plate to gather the correct specifications for the filter and oil, preparing everything needed for the service.
For the Volvo XC90 T8 AWD engine oil
we will use 0W20 synthetic oil from Lafrenzoll

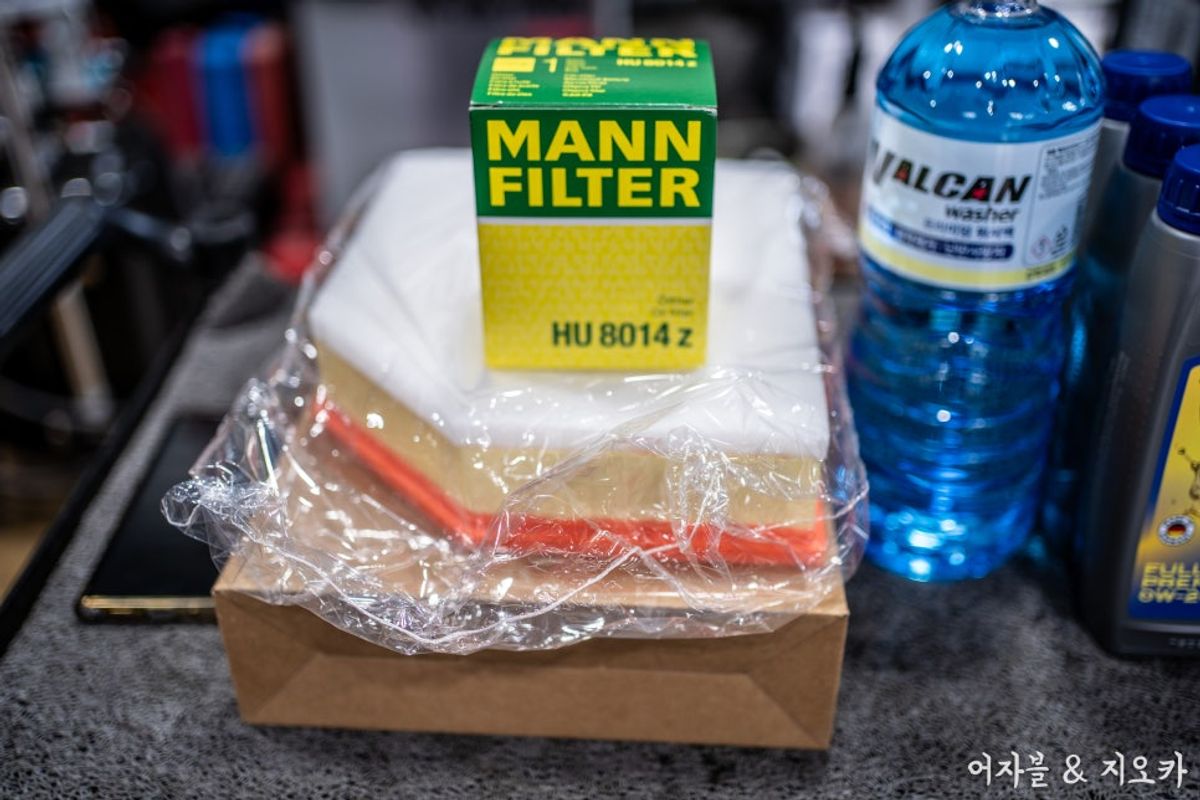

& an air cleaner oil filter
by Gioca
For the Volvo XC90 T8 AWD engine oil
we will use 0W20 synthetic oil from Lafrenzoll
& an air cleaner oil filter
by Gioca
Additionally, we offer one free bottle of washer fluid!

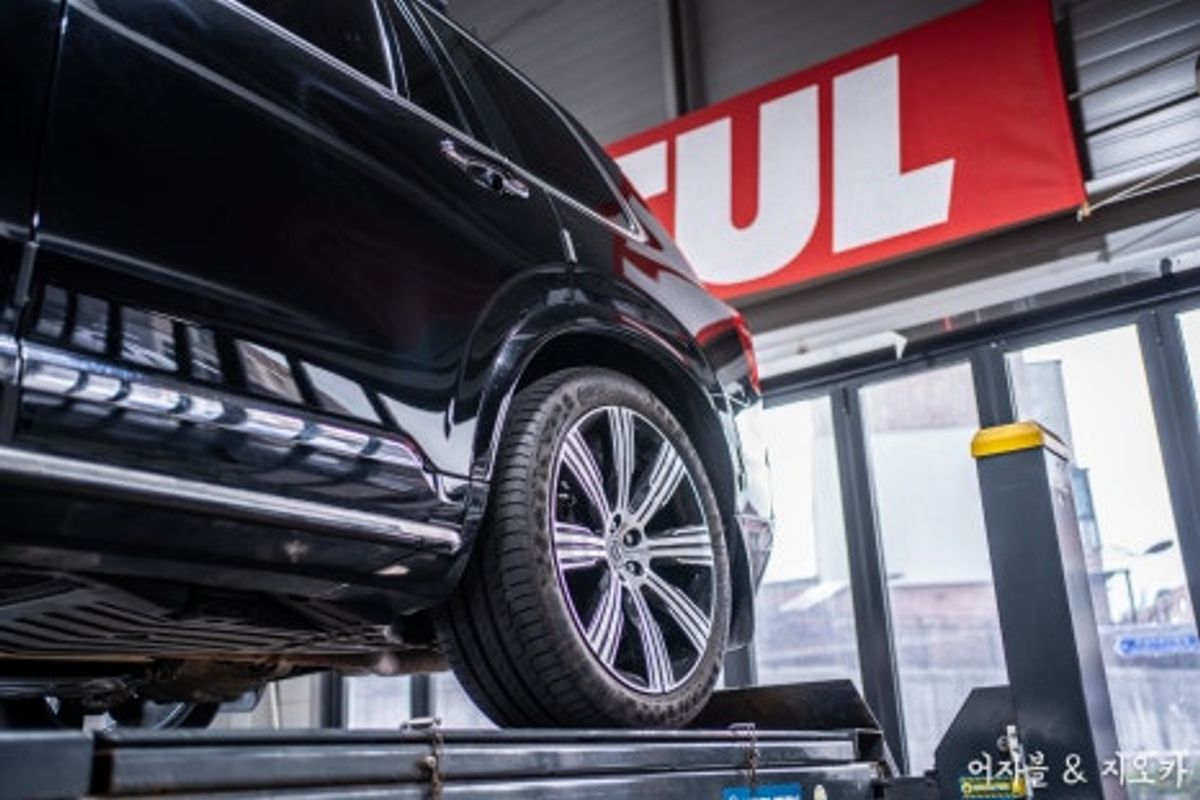

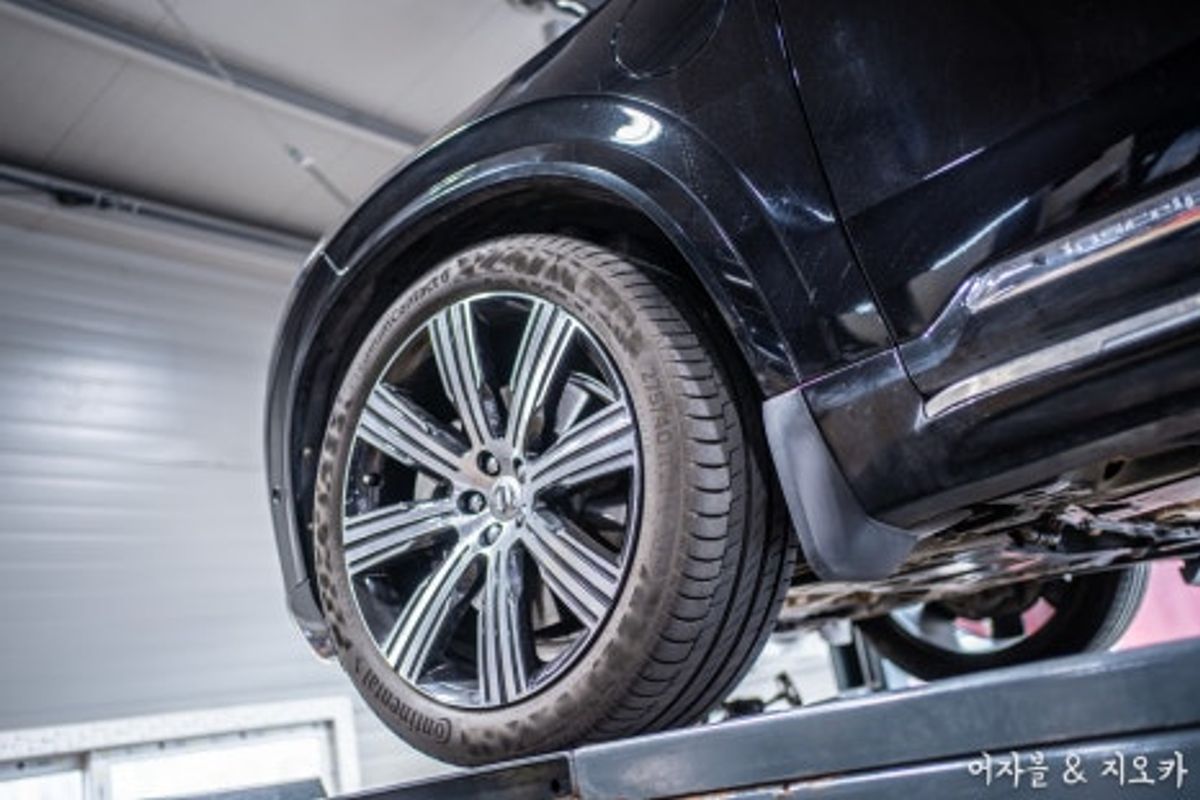

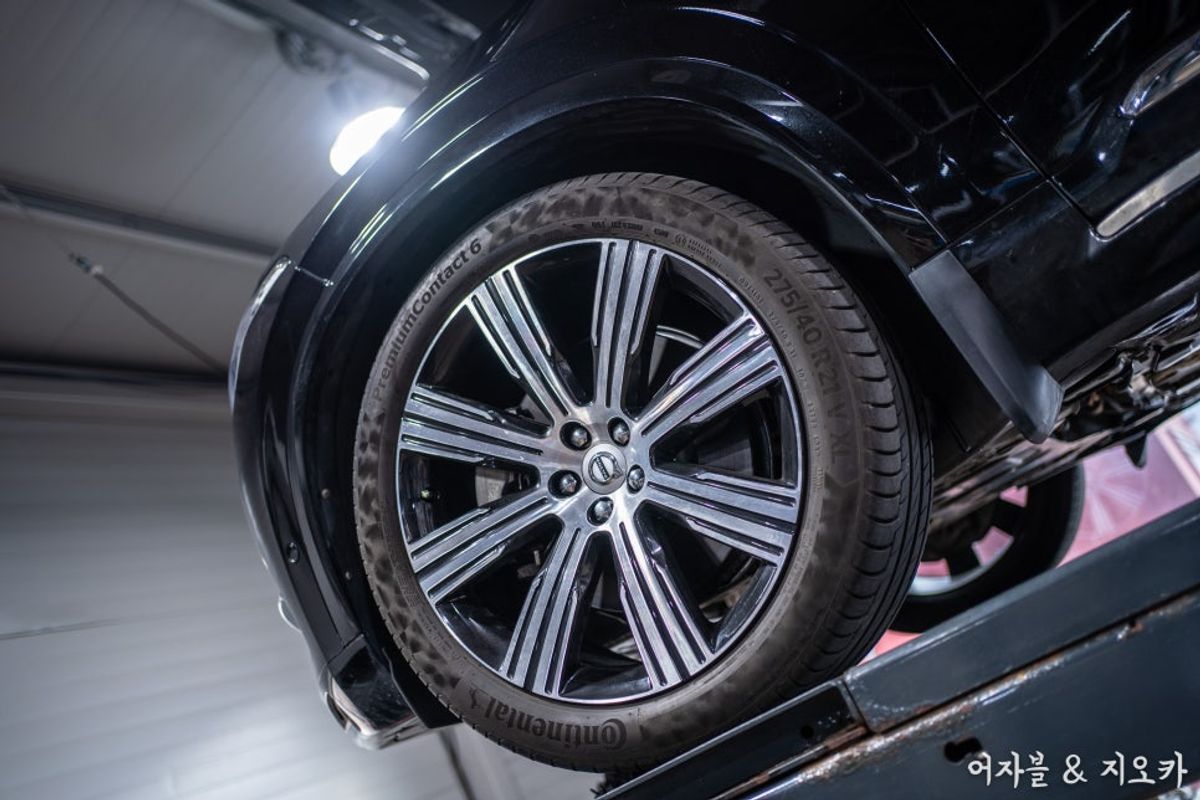

As soon as I arrived, I started the work. Hmm?! But as I lifted the car, something felt different?!
I began with an inspection
This is a Volvo Recharge plug-in hybrid model. The XC90 is not a common vehicle, so it caught my attention.

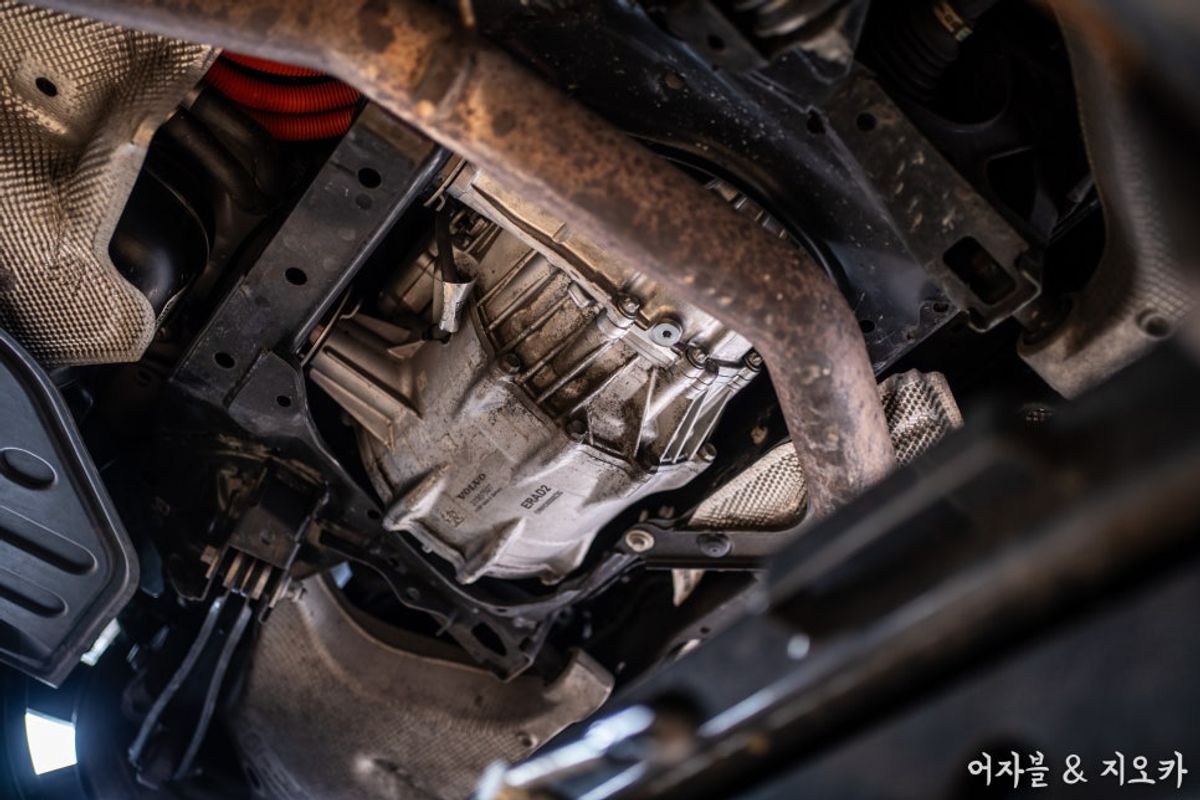

It features both an engine and an electric motor, applying the Electric Rear Axle Drive (ERAD). Essentially, a large motor fits into the differential space at the back.
Recently, we received this model, and today the owner requested only an oil change. We conducted an inspection, but another customer with an S90 model asked us to check the engine and transmission differential PTU. Upon examining the underside, I was surprised to see the electric motor.;
During the consultation, I should have checked the vehicle identification number in detail. However, due to limited information, I mistakenly thought it was just an S90 model.
The electric motor uses Volvo's proprietary motor oil. You can think of it as either clutch oil or transmission oil. Since there is limited information available, we recommend having it replaced at the service center.
The engine oil composition does not change for the Recharge model. The engine remains the XC90 T8, so the specifications are identical.
The air cleaner is prepared for cost-effectiveness, while the oil filter is always of OEM quality!
We use oil that meets Volvo specifications
The viscosity is 0W20 (older models may also use 5W30 or 0W30, but recent models require only 0W20).

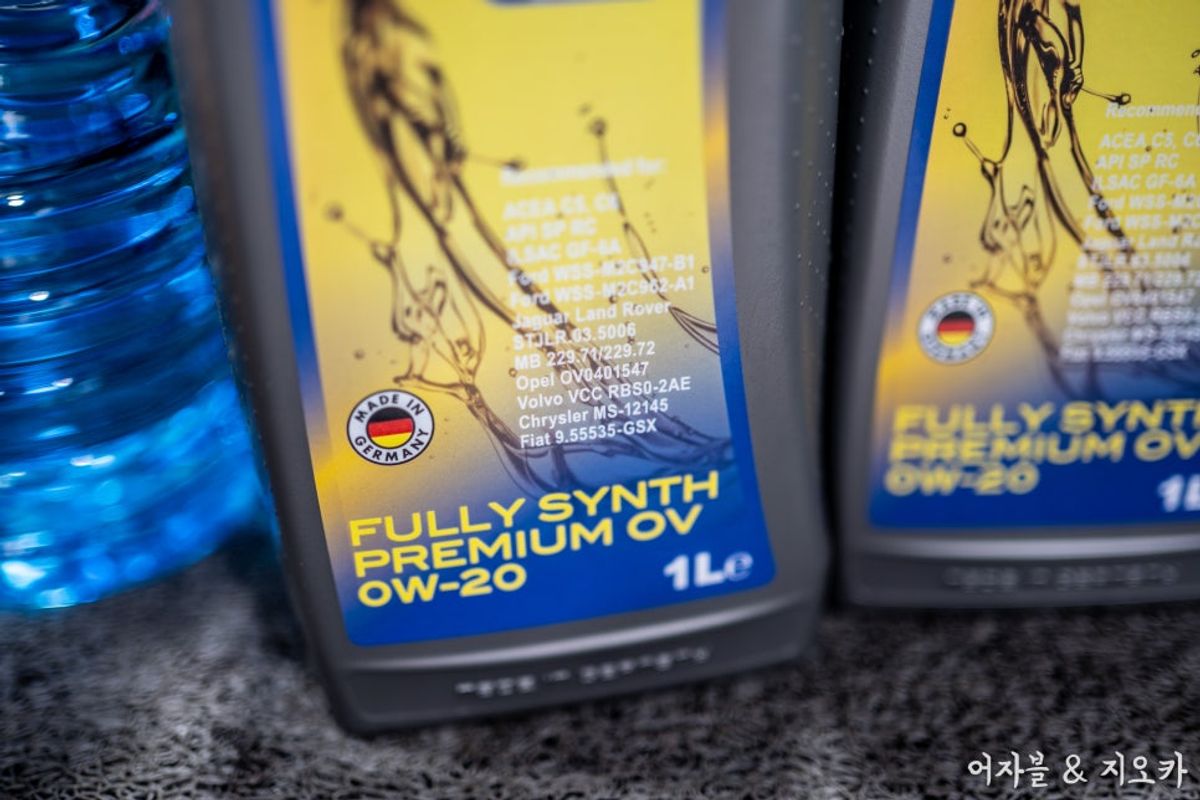

The specifications include Volvo VCC-RBS0-2AE, and we use Lafrenzoll 0W20 synthetic oil.
Honestly, if you focus too much on specifications and viscosity, the options for oil become limited, and the prices tend to rise slightly. (The more certified specifications there are, the higher the oil price tends to be.) Even though I would like to recommend something different, Volvo owners seem to prefer this option.
※ Personally, I think a slight increase in viscosity for engine durability and quietness, like 0W30 or 5W30, could be beneficial. However, if you insist on 0W20, as long as you consider the latest specifications or a C5 level specification, you could have a wider range of oil choices. It might be worth considering a change.
Let's get to work!

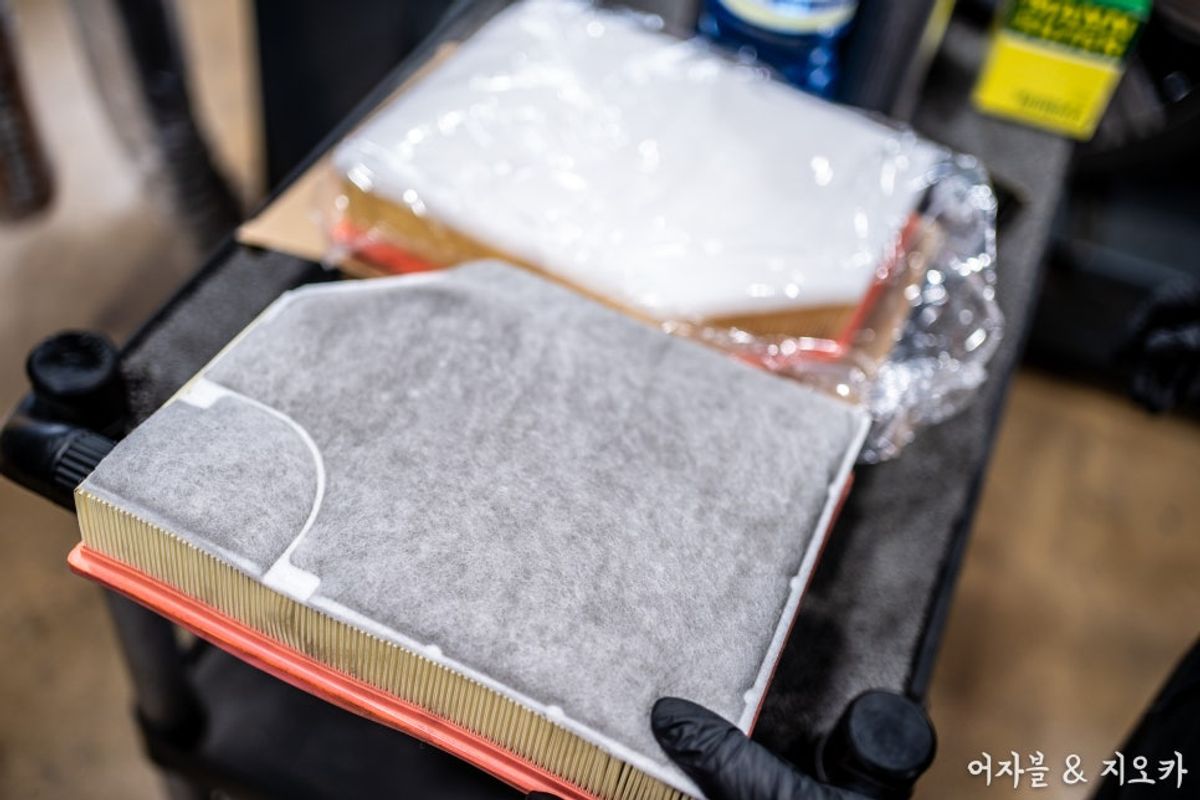

First, we will replace the air cleaner. Aftermarket OEM products have now standardized to high-quality filters, so I recommend them for cost-effectiveness.
Although it would be great to find a premium filter like Mahle, the price can vary from $10 to as much as $30.
To ease the burden of replacement costs, we are using cost-effective options.

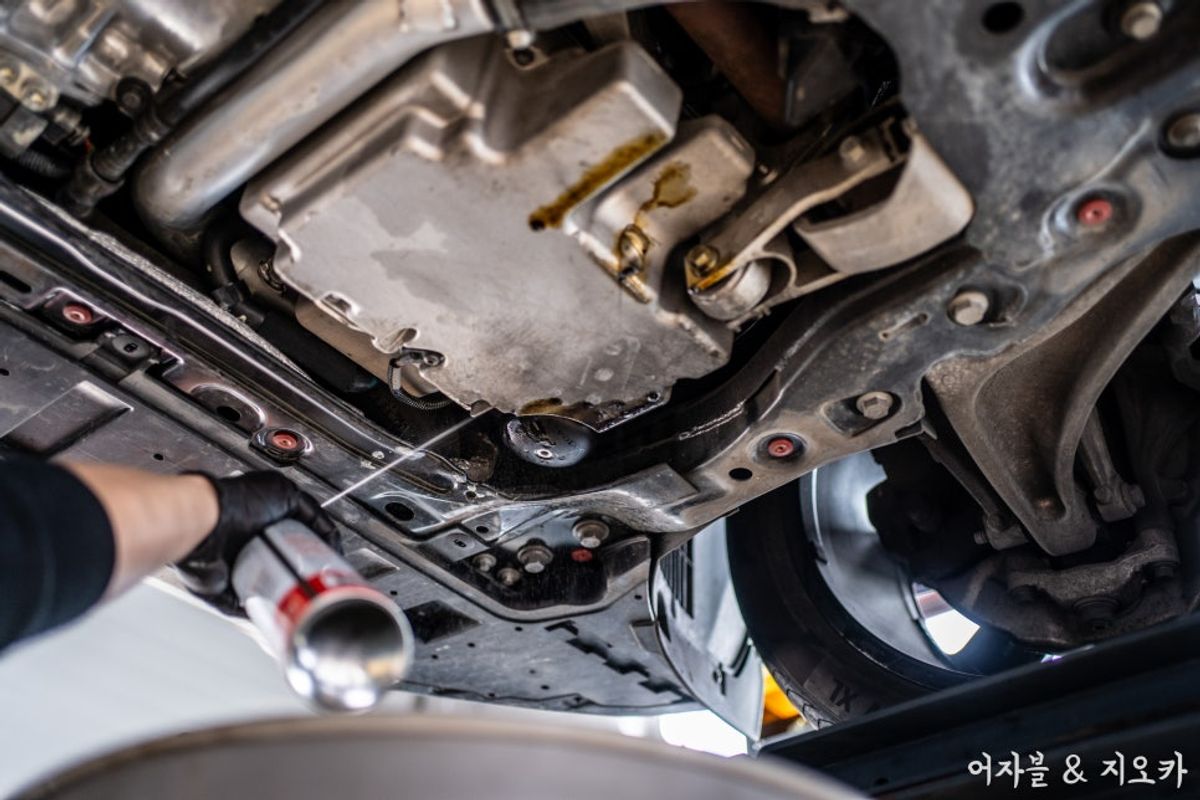

Now, let's drain the oil.

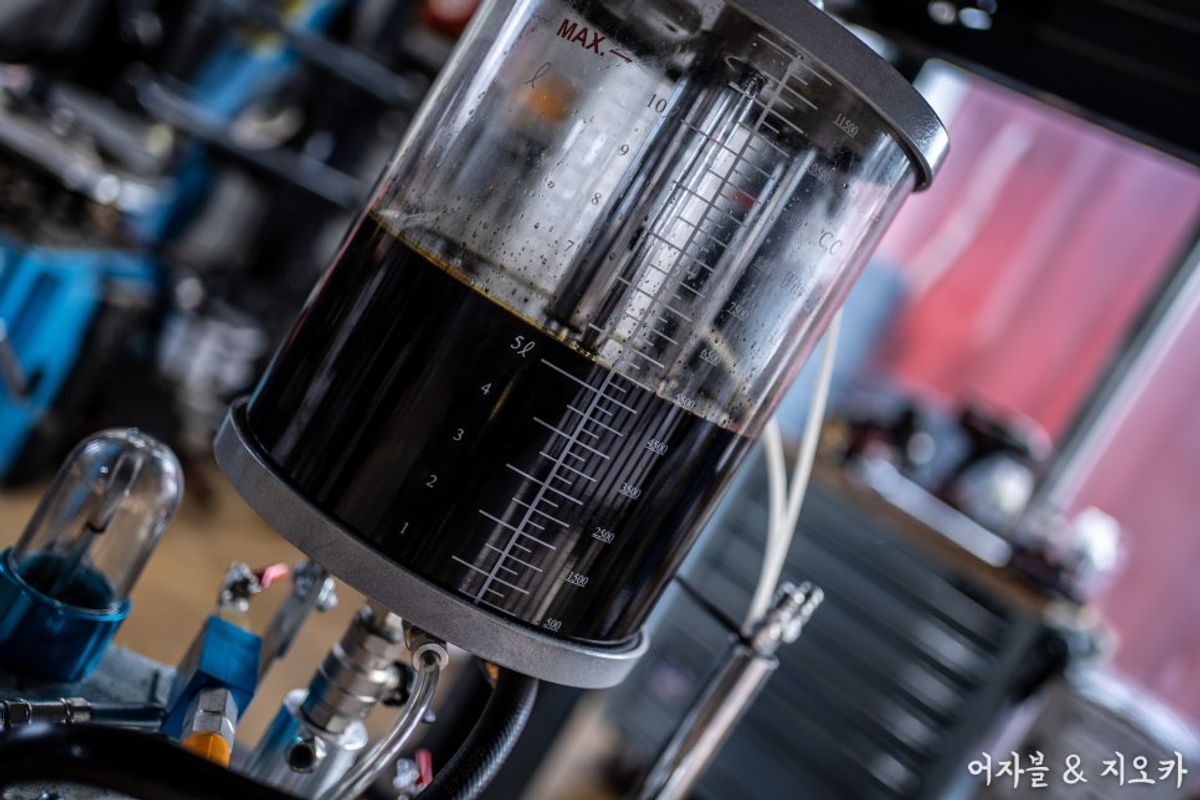

I always check the oil condition, and since Volvo frequently sends alerts about oil levels due to tolerance values, I regularly monitor them.
I conduct thorough inspections upon arrival and explain everything to the owner!

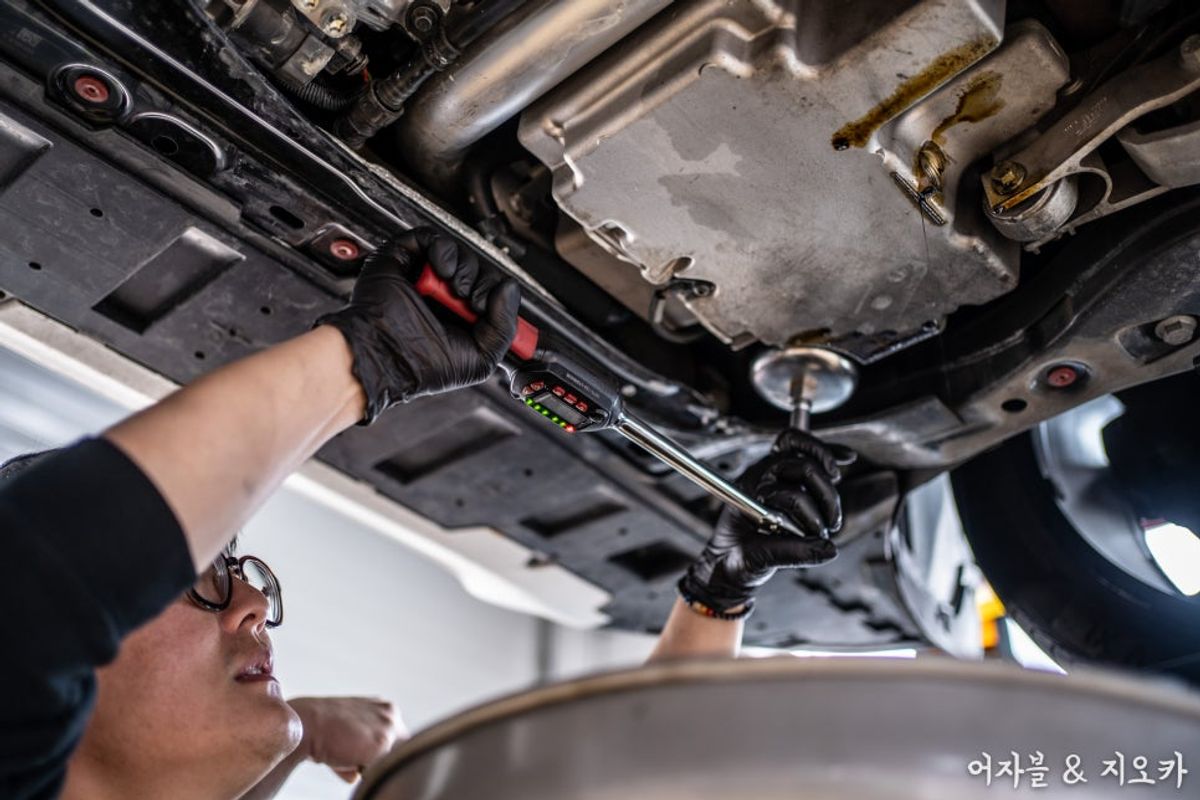

Now, I will install the oil filter.
As long as I secure it properly with a torque wrench, there should be no significant issues.
Additionally, I must keep the surrounding area clean to ensure accurate assessments during inspections, so cleaning is essential!
The oil cap has a drain cock, but if the O-ring is not replaced, oil leaks can occur, so let's be attentive to potential oil issues.

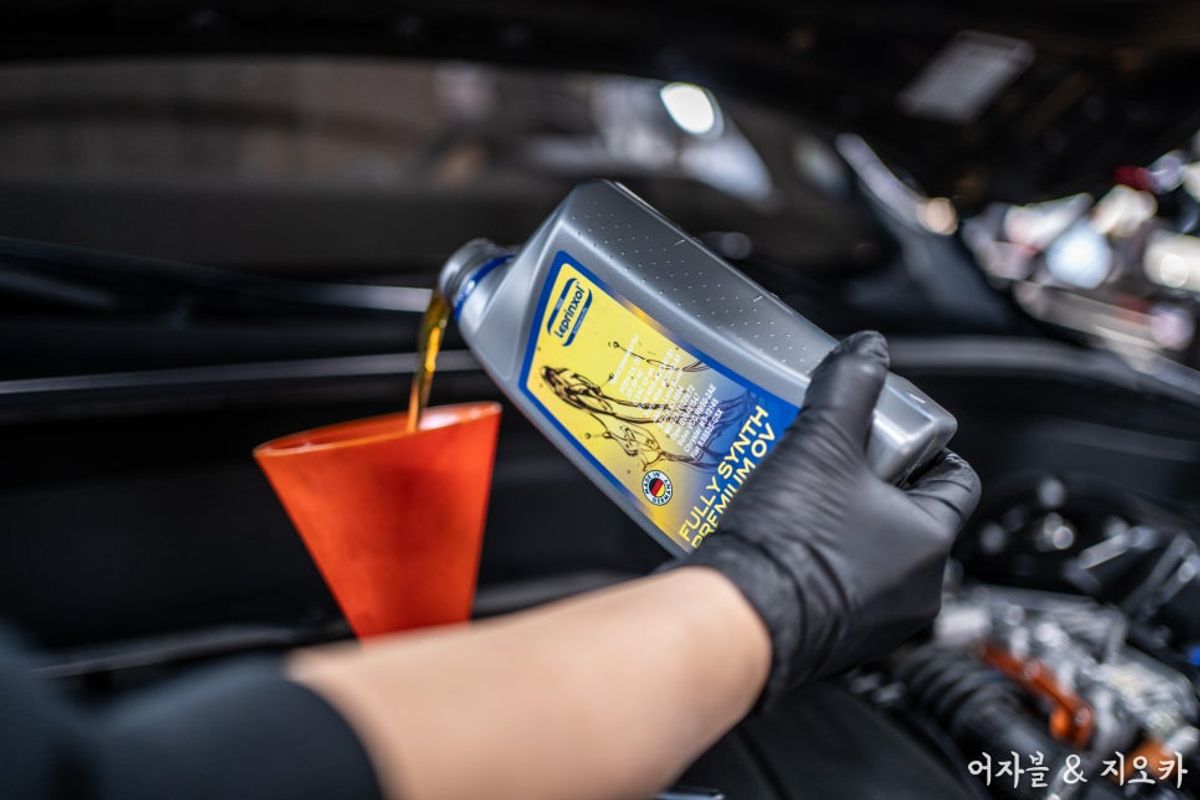

Now, let's pour in the engine oil.
It’s essential to be familiar with the manual oil quantity!
Volvo’s website provides accurate information about oil quantities. The engine code for each vehicle appears, and using a scanner will give precise readings, so refer to it if you're unsure.
I finish leveling the oil in two stages, considering the residual oil removal tolerance values.
Additionally, I should have taken a photo of the reset, but I forgot while working. I appreciate your understanding!
If you’re curious, there are many work logs on my blog, so feel free to check them out!
This type of work takes about 50 minutes or so!
Changing the engine oil for a Volvo is not difficult!
This concludes today’s post!
